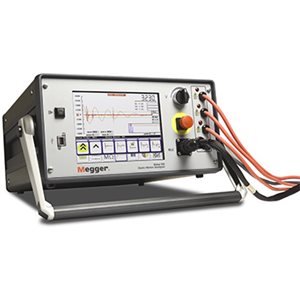

Baker DX

Static Motor Analyzer

  • Comprehensive range of tests in one instrument
  • Configurable to meet needs and price point
  • 4 kV to 12 kV for wide spectrum of motors and coils
  • Compatible with the Baker PPX Power Packs for testing up to 40 kV
  • High and low voltage tests to characterize circuits and insulation
  • Coil mode for rapid testing and data storage

In an industrial setting, the consequential cost of failure or unplanned downtime of critical rotating machinery can be significant. The Baker DX series can apply a wide set of off-line electrical tests to assess the condition of motors and coils.

In a motor repair shop, or for new production motors, the Baker DX gives confidence that a motor is correctly wound and insulated, before it’s deployed in the field.

The standards-compliant surge test – a signature feature of Baker testers for decades – is the only test that can safely expose turn-to-turn insulation weaknesses. The Baker DX can find early indications of insulation weakness and faults in windings, between phases, coil-to-coil and in groundwall insulation. It can identify if contamination is impacting insulation strength. It can also detect problems with connections such as feed cable insulation weakness, motor imbalances, opens or high resistance.

The DX’s benefits can be extended to low-impedance coils, such as armatures, through the use of the Baker ZTX low impedance coil accessory. The ZTX, which includes the ATF5000 commutator probe accessory, allows the DX to apply surge tests to coils which require higher currents.

Baker Surveyor DX Software

Surveyor DX software enables Baker DX operators to use a personal computer to store more test data, generate and view reports across the full spectrum of  Baker DX tests, and share and compare analysis with other maintenance personnel using data from multiple analyzers. Learn more from the Baker Surveyor DX datasheet.

Product Documents
Brochure
Brochure - DX
Data sheet
Data sheet - Surveyor DX software
Data sheet
Data sheet - ZTX Low-Impedance Coil Test Accessory
Quick start
Quick reference guide - Baker DX
User guide
User guide - Baker DX
Baker DX

The following utility for Baker DX analyzers enables company logos to be embedded in test reports generated by the analyzer. It also enables Baker DX screen captures that can be saved in common image formats (e.g., .jpg, .bmp).

To receive Baker DX firmware updates, and to request a password for updates and instructions, contact Megger Baker Instruments Technical Support Group via email at baker.tech-support@megger.com. Additional firmware for the Baker DX can be downloaded from the following list.

Surveyor DX

Baker Surveyor DX software is a Windows PC-based software program. It extends reporting and archive capabilities of the Baker DX static motor analyzer beyond the instrument itself. Users can export data from the analyzer to a PC to save test data, analysis and reports on a desktop or mobile PC.
