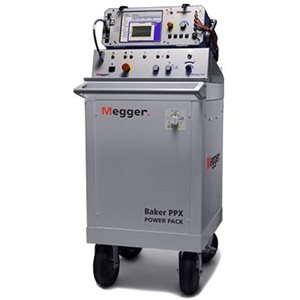

Baker PPX Power Packs

Static motor analyzer booster

Product Documents
  • Used to extend insulation testing range of AWA-IV static motor analyzers and DX analyzers
  • Test voltages from 5 kV to 40 kV
  • Available in three models (PPX30, PPX40, PPX30A)
  • Mobile, large-wheeled cabinet for easy transport to the test area
  • AC outlet on cabinet for the host unit (i.e., AWA-IV or DX), as well as lead storage
  • Baker PPX30A includes an internal armature test circuit built in for testing large DC motors. When in armature mode, test voltage is limited to 2100 V and the current available is increased up to 7000 A.
  • Complete range of tests (surge, winding resistance, Megohm (PI, DA), continuous ramp DC step-voltage, and DC hipot tests).

When coupled with Baker static motor analyzers (i.e., certain Baker DX and AWA-IV models), the Baker PPX Power Packs extend the insulation testing voltage range.  They help verify the condition of insulation on form-wound coils, high voltage AC motors and large DC motors, and are ideal for use in manufacturing, predictive maintenance, and motor rewind and repair settings.

In order to test large, high voltage motors that typically drive the critical processes in industry, higher test voltages and currents than those available in portable motor analyzers are required.  Baker Power Packs (when used in concert with a Baker static motor analyzer) verify insulation at voltages up to 40 kV, with up to 2600 A of current available.
